- Description
Description

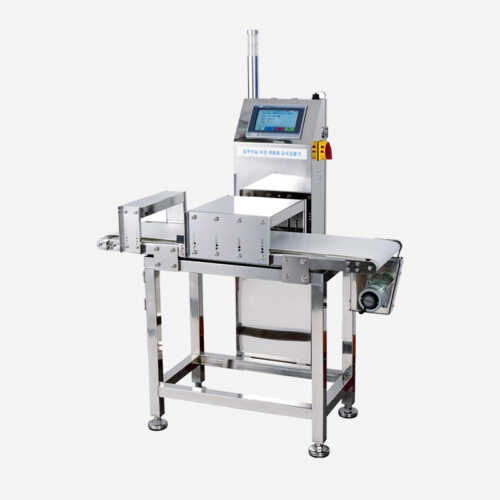

| Model name | NSAMD-W240 | NSAMD-W360 | NSAMD-W480 |
|---|---|---|---|
| Sensor (tunnel) width | 300mm | 400mm | 500mm |
| Sensor (tunnel)height | 20mm~ | ||
| Detection sensitivity* | Fe 1.0 mm to 1.5 mm SUS | ||
| Conveyor length | 1,000~1,700mm | ||
| Conveyor belt speed | 10 to 50 m/min | ||
| Operation during metal detection | Belt stop/light lamp/rejector | ||
| Power used | 220VAC ±10%, single phase 50/60Hz | ||
* Detection sensitivity may vary depending on the usage environment.
