Complate System
- Description
Description

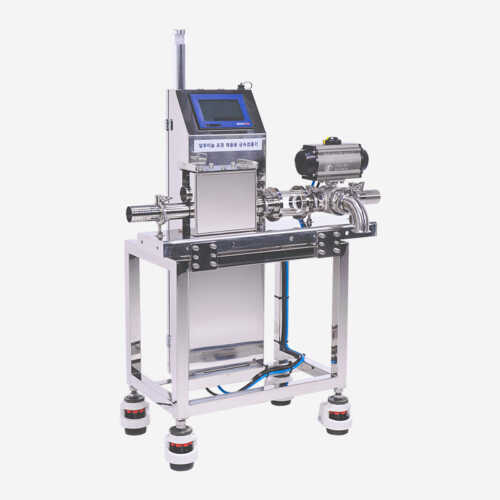

| Model name | NSAMD-Pipe | ||
|---|---|---|---|
| Pipe specifications (detector)* | 2S(50.8Ø) | ||
| Detection sensitivity** | Fe 1.0 mm to 1.5 mm SUS | ||
| External specifications | 600 mm (W) L850 (L) to to | ||
| Flow rate | 4800L/H | ||
| Detection operation | Light lamp (buzzer) / Rejector (3 Way ball valve) | ||
| Power used | 220VAC ±10%, single phase 50/60Hz | ||
* In / Out standard can be changed
** Detection sensitivity may vary depending on the usage environment.
