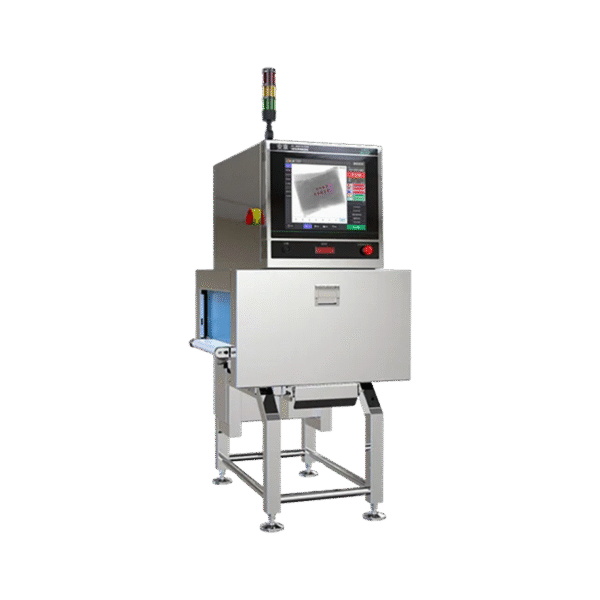

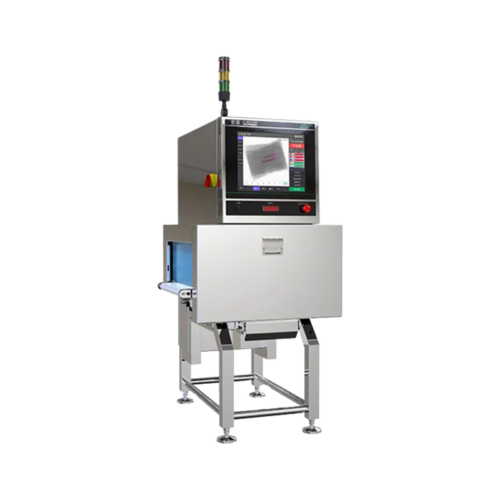

X-Ray Systems for Packed Food – Standard
Vixdetect X-ray standard contaminants detection system includes a variety of models, which can achieve accurate and reliable contaminants detection for packaging products with different specifications, such as, medium and so on. The system is in products, medicines and chemicals.
- Description
- Brand
- Specification
- Features
Description

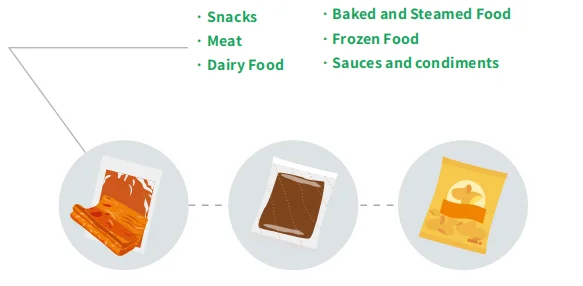

- Application
- Contaminants
Metals, Glass, Ceramic, Hard Plastic, Resin, Bones, Shells, etc.
Brand
VIXDETECT
| Model | VXD-C2412-S | VXD-C4016-S | VWXD-C5025-S | VXD-C6030-S | VXD-C7040-S |
| X-Ray Source | Max 150W | Max 210W/350W | Max210W/350W | Max 350W/480W | Max350W/480W |
| Sensitivity | SUS Ball: 0.3mm SUS Wire: 0.2*2mm Glass/Ceramic: 1.0mm |
SUS Ball: 0.3mm SUS Wire: 0.2*2mm Glass/Ceramic: 1.0mm |
SUS Ball: 0.3mm SUS Wire: 0.2*2mm Glass/Ceramic: 1.0mm |
SUS Ball: 0.3mm SUS Wire: 0.2*2mm Glass/Ceramic: 1.0mm |
SUS Ball: 0.5mm SUS Wire: 0.4*2mm Glass/Ceramic: 1.5mm |
| OS | Linux | ||||
| HMI | 17-inch touch screen | ||||
| Conveyor Speed | 5~60 m/min | ||||
| Product Weight | Max 5kg | Max 10kg | Max 20kg | Max 30kg | Max40kg |
| Product Dimension | Max Width 240mm Max Height 120mm |
Max Width 400mm Max Height 160mm |
Max Width 500mm Max Height 250mm |
Max Width 600mm Max Height 300mm |
MaxWidth 700mm Max Height 400mm |
| Power | AC220V, 50-60Hz | ||||
| Environment | Working Temperature 0~45℃, Relative Humidity 30~85% no condensation | ||||
| IP Grade | IP66 for Conveyor, IP54 for other parts | ||||
| Machine Material | 304 SUS, Mirror/Sandblasted | ||||
Remarks: Themost detectableforeign body ruler is closely related to the material composition, packaging material, thickness and other parameters in the produt.In the actual production environment, please refer to the actual product test resuts. The intem ational standard tests that the ceramic glass is 1.0mm at most, and the actual accuracy of empty glass ceramics will be beter than this standard.

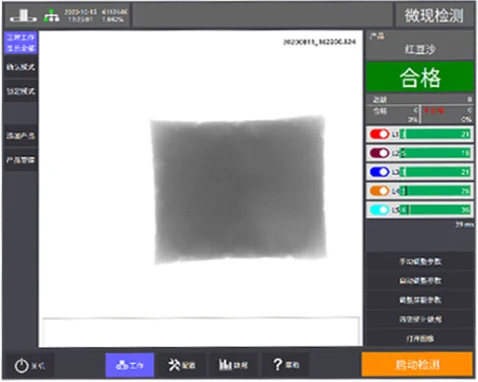

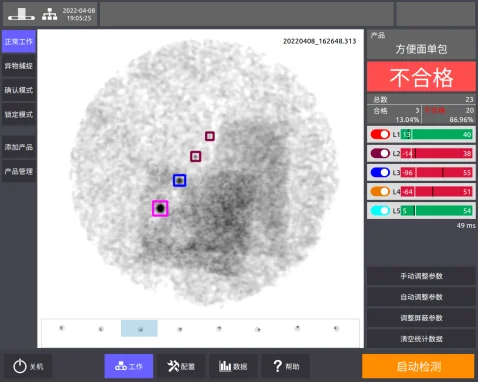

Based on the advanced algorithm platform, the precision detection can be realized.
● The standard AI algorithm is simple and intelligent, requiring any experience,and can quickly add new products according to the guided learning.
● Customized Al algorithms are suitable for special products, and standard algorithms and customized algorithms can be tested together.
● Step up the detection accuracy;
● According to the product form, a variety of elimination methods can be selected to accurately eliminate unqualified products.
● Wifi, 4G cable connection, remote fast technology, dynamic push equipment failure.
● Server-level Linux system, computer virus immunity, abnormal power failure without data loss;
● The conveying system and the main machine can be separated, and can be directly washed and cleaned;
● It is superior to the international radiation safety standards and specifications,and has the function of safety interlock monitoring.
