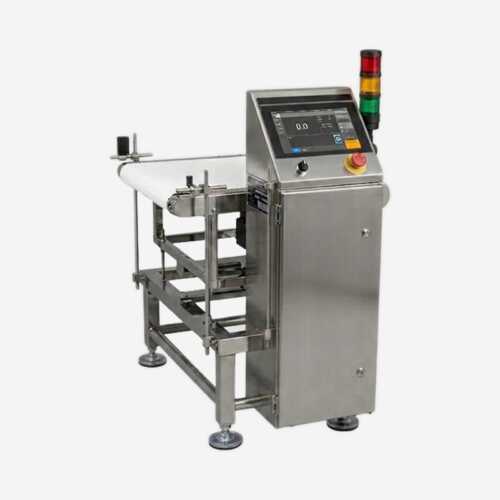

Checkweigher for Heavy Loads
Warranty: The whole machine comes with a one-year warranty, flexible customizable warranty solutions are available;
Technical Training: Professional operation guidance documents are provided, along with lifelong free remote technical support.
Overview
This checkweigher is designed for monitoring single large or heavy products in challenging industrial environments. It performs automatic high-precision weighing and sorting of high or heavy loads, ensuring consistent product quality and efficient production.
Application
Specification
| Model | VWD-4060-30KG | VWD-4080-30KG | VWD-5060-30KG | VWD-5080-30KG |
| Weigh Range | 10–30kg | 10–30kg | 10–30kg | 10–30kg |
| Highest Accuracy* | ±5g | ±5g | ±5g | ±5g |
| Product Length (transport direction) | 150–400mm | 150–600mm | 150–400mm | 150–600mm |
| Max Detection Speed | 65 pcs/min | 50 pcs/min | 65 pcs/min | 50 pcs/min |
| Weighing Conveyor Length | 600mm | 800mm | 600mm | 800mm |
| Conveyor Belt Width | 400mm | 500mm | 400mm | 500mm |
| Conveyor Belt Height | 800±50mm | |||
| Product Recipe Storage | 200 Groups | |||
| Culling Mode | Pusher / Stop + Alarm | |||
| HMI | 10-inch Touch Screen | |||
| Operating System | Embedded RTOS | |||
| IP Grade | IP54 | |||
| Material | SUS 304 Stainless Steel | |||
| Communication Interface | USB / Network / RS232 / RS485 / 4G Remote / Unattended Line Support (optional) | |||
| Resolution | 1g | 1g | 1g | 1g |
| Conveyor Speed | ≤60 m/min | |||
| Weight (kg) | 120 | 130 | 130 | 140 |
* Detection accuracy depends on the on-site environment and the product’s weight, size, and characteristics.
Features
- Designed to enhance productivity and weighing precision.
- High-speed sampling control ensures faster and more accurate measurements.
- Large 10-inch color touchscreen with intuitive interface; operable within 3 minutes.
- Reinforced stainless-steel frame; optional IP54 waterproof model for harsh environments.
- Multiple product presets for quick changeover between items.
- Modular design simplifies disassembly, cleaning, and maintenance.
- Adjustable speed and frequency to suit production requirements.
- Zero tracking: manual, automatic, and dynamic zero calibration supported.
Weigh Range
| Weight Range | Highest Accuracy |
| 10–60kg | ±5g–±10g |
Application
| Large packaged products | Heavy-duty packaged goods |
FAQ
Q: What are the advantages of the Vixdetect Checkweigher?
A: The Vixdetect Checkweigher is engineered for efficiency and precision. Its high-speed sampling system enables rapid and accurate weighing. The 10-inch color touchscreen and user-friendly interface allow full operation within three minutes. Built with a durable stainless-steel frame and optional IP65–IP67 waterproofing, it supports multiple product presets and quick product switching. The modular structure makes it easy to install, maintain, and clean, ensuring reliability and long-term stability in demanding production environments.
