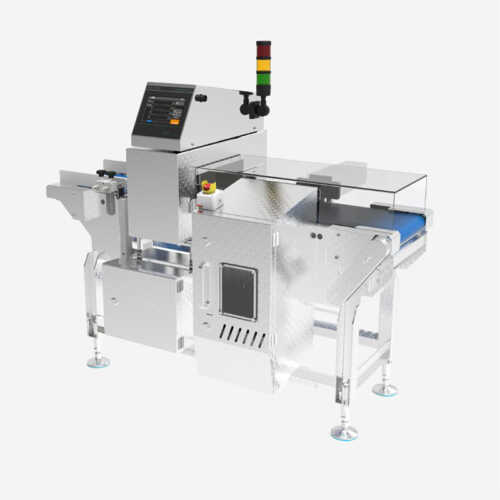

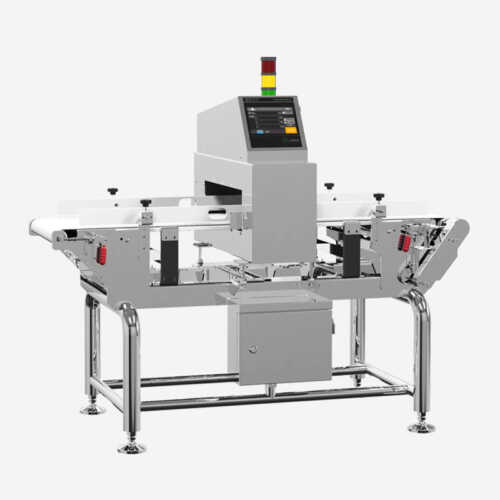

VMD-C
A conveyor metal detector is a device specifically designed for automated production lines, capable of real-time detection of metallic objects during product transportation. It is widely used in industries such as food, pharmaceuticals, and packaging.
Overview
Detector Model
| Item | Detectable Width,cm | ||||||||
| 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 110 | |
| Models | VMD-C2506 | VMD-C3008 | VMD-C4006 | VMD-C5008 | VMD-C6008 | VMD-C7008 | VMD-C8005 | VMD-C9015 | VMD-C11007 |
| VMD-C2508 | VMD-C3010 | VMD-C4008 | VMD-C5010 | VMD-C6010 | VMD-C7010 | VMD-C8008 | |||
| VMD-C2510 | VMD-C3012 | VMD-C4010 | VMD-C5012 | VMD-C6012 | VMD-C7012 | VMD-C8010 | |||
| VMD-C2512 | VMD-C3015 | VMD-C4012 | VMD-C5015 | VMD-C6015 | VMD-C7015 | VMD-C8012 | |||
| VMD-C2515 | VMD-C3018 | VMD-C4015 | VMD-C5018 | VMD-C6018 | VMD-C7018 | ||||
| VMD-C3020 | VMD-C4018 | VMD-C5020 | VMD-C6020 | VMD-C7020 | |||||
| VMD-C4020 | VMD-C5022 | VMD-C6025 | VMD-C7022 | ||||||
| VMD-C4022 | VMD-C5025 | VMD-C6028 | VMD-C7025 | ||||||
| VMD-C4025 | VMD-C5028 | VMD-C6030 | VMD-C7030 | ||||||
| VMD-C5030 | VMD-C6035 | ||||||||
| VMD-C6040 | |||||||||
Specification
| Parameter setting | Fully automatic learning without manual phase setting |
| Frequency | 4 frequency, 50K~800K |
| Working mode | Dry, wet, salt, aluminized film and other modes |
| Product recipe storage | 200 groups |
| HMI | 7-inch touch screen |
| Operating system | Embedded RTOS |
| Conveyor speed | Software speed control 5–60 m/min |
| Alarm mode | Audible and visual alarm / alarm stop / automatic sorting system (optional) |
| Conveyor belt height | 800±50 mm |
| Conveyor belt material | Food grade PU tape / chain plate (optional) |
| Temperature and humidity | Ambient temperature 0~45℃, relative humidity 30~85% no condensation |
| IP Grade | Machine IP66, motor IP67 |
| Equipment and material | 304 stainless steel |
| External interface | USB / Network port / RS232 / RS485 / 4G remote / unattended production line support (optional) |
Sensitivity
| Fe ≥ φ0.4mm | SUS ≥ φ0.8mm |
Application
| Packaged or bulk food |
