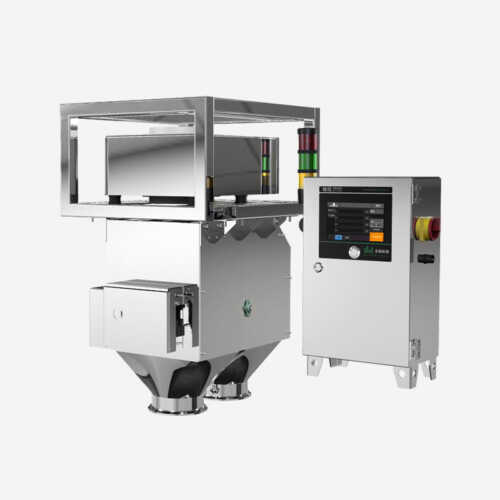

VMD-F
A gravity-feed metal detector is a device used to detect metal contaminants in products, operating on the principle of allowing products to fall into the detection area under gravity. As products pass through, built-in sensors detect the presence of metal contaminants. Upon detecting metal contaminants, the equipment triggers an alarm and separates the affected products from the production line to ensure product quality and process safety.
Overview
Powder, Granule Products
Specification
| Model | VMD-F75 | VMD-F100 | VMD-F150 | VDF-F200 |
| Diameter (mm) | 75 | 100 | 150 | 200 |
| Sensitivity | Fe ≥ φ 0.5 mm SUS ≥ φ 0.8 mm |
Fe ≥ φ 0.6 mm SUS ≥ φ 1.0 mm |
Fe ≥ φ 0.8 mm SUS ≥ φ 1.5 mm |
Fe ≥ φ 1.0 mm SUS ≥ φ 2.0 mm |
| Power Supply | AC220V 50–60 Hz | |||
| Parameter Setting | Auto Learning | |||
| Recipe Count | 200 Sets | |||
| Throughput (L/h) | 7000 | 8000 | 17000 | 19000 |
| Weight (kg) | 120 | 140 | 160 | 180 |
| Product Type | Powder, Granular Products | |||
| Compressed Air | ≥ 0.5 MPa | |||
| Rejector | High-Speed Flap | |||
| Tube Material | PP | |||
| HMI | 7-inch Touch Screen | |||
| Operating System | Embedded RTOS | |||
| IP Grade | IP66 | |||
| Device Material | SUS304 | |||
| Communication Port | USB / Ethernet / RS232 / RS485 / 4G Wireless / Auto Factory (Optional) | |||
